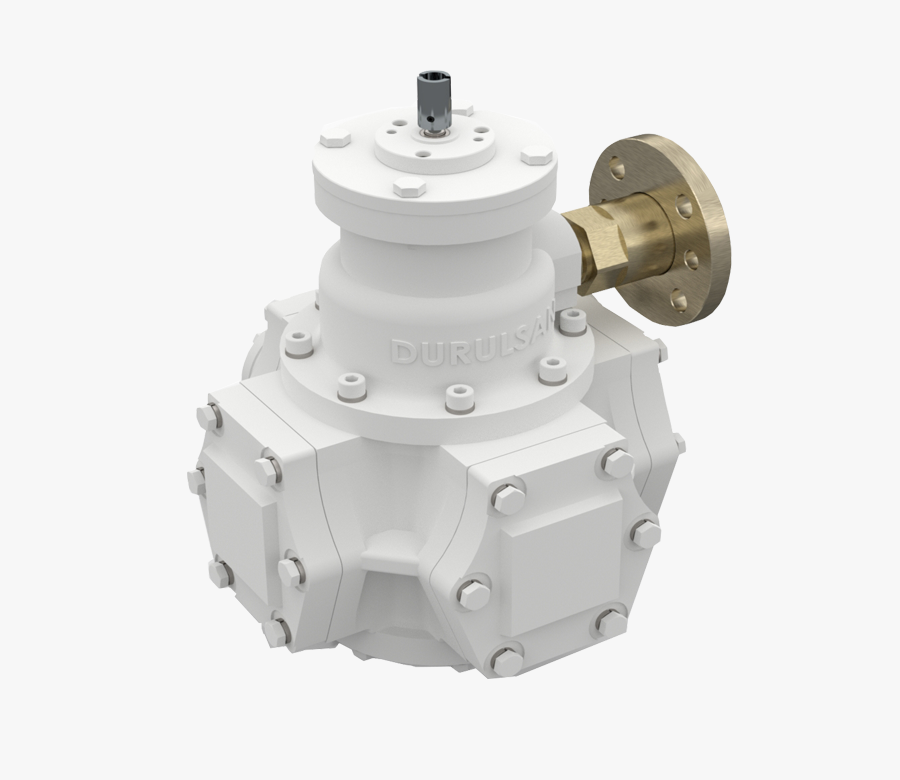

DM Mechanic Meter



Meter, in mechanical type and having a chamber rotating with the passing gas flow and each turn corresponding to a certain volume.

The return motion is transmitted to the pulsar by means of a mechanical device.



Advantages

Precise metering

Sealing design safety

High data safety

High resistant materials

Flange type quick connections,

Low breakdown ratio



Directive 2014/34/EU

OIML R117-1 / 2007



Maximum Working Pressure 1,6 - 1,8 Mpa

Working Pressure 0,5 - 1,3 MPa

Design Pressure 2,5 Mpa

Flow Rate 5-50 L/min (min-max)

Vc 0,5 lt/r ; MMQ 0,5 lt

Adjustable min. Volume 0,1 %

Accuaracy ± 0,6 %

Ambient Temperature -25°C / + 55 °C

Connections of gaseous phase inch DN 20

Working liquid LPG Temp. (min/max) -10 °C/50°C

DM Mechanic Meter
