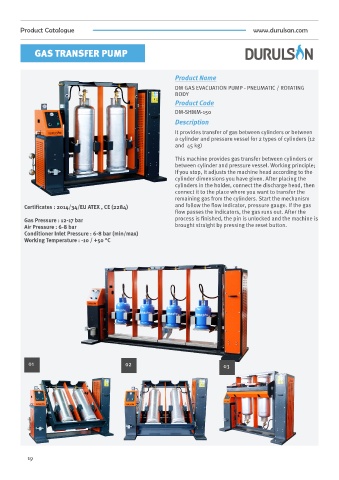

GAS TRANSFER PUMP

Product Name
DM GAS EVACUATION PUMP - PNEUMATIC / ROTATING
BODY
Product Code
DM-SHMM-150
Description
It provides transfer of gas between cylinders or between
a cylinder and pressure vessel for 2 types of cylinders (12
and 45 kg)

This machine provides gas transfer between cylinders or
between cylinder and pressure vessel. Working principle;
If you stop, it adjusts the machine head according to the
cylinder dimensions you have given. After placing the
cylinders in the holder, connect the discharge head, then
connect it to the place where you want to transfer the
remaining gas from the cylinders. Start the mechanism
Certificates : 2014/34/EU ATEX , CE (2284) and follow the flow indicator, pressure gauge. If the gas
flow passes the indicators, the gas runs out. After the
Gas Pressure : 12-17 bar process is finished, the pin is unlocked and the machine is
Air Pressure : 6-8 bar brought straight by pressing the reset button.
Conditioner Inlet Pressure : 6-8 bar (min/max)
Working Temperature : -10 / +50 °C

01 02 03
