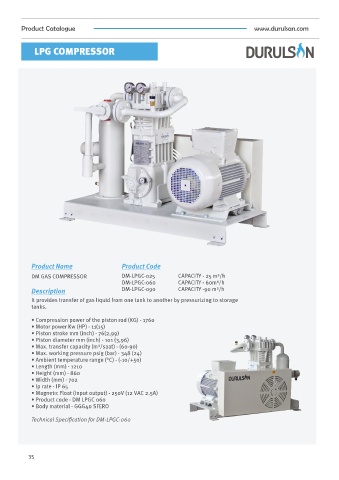

Page 38 - 2021-ENGLISH-CATALOG
P. 38
Product Catalogue www.durulsan.com
LPG COMPRESSOR LPG PUMP
Product Name Product Code
DM GAS COMPRESSOR DM-LPGC-025 CAPACITY - 25 m³/h
DM-LPGC-060 CAPACITY - 60m³/h
Description DM-LPGC-090 CAPACITY -90 m³/h
It provides transfer of gas liquid from one tank to another by pressurizing to storage
tanks.
• Compression power of the piston rod (KG) - 1760
• Motor power Kw (HP) - 11(15)
• Piston stroke mm (inch) - 76(2,99)
• Piston diameter mm (inch) - 101 (3,96)
• Max. transfer capacity (m³/saat) - (60-90)
• Max. working pressure psig (bar) - 348 (24)
• Ambient temperature range (°C) - (-10/+50)
• Length (mm) - 1210
• Height (mm) - 860
• Width (mm) - 702
• Ip rate - IP 65
• Magnetıc Float (input output) - 250V (12 VAC 2.5A)
• Product code - DM LPGC 060
• Body material - GGG40 SFERO
Technical Specification for DM-LPGC-060
35
